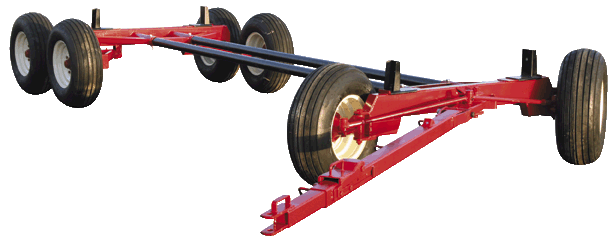

RS120T SPECIFICATIONS
Axles
6" x 3" .188 Wall
Spindle
2-1/4" Front, 2-1/4" Rear
Hub
6 or 8 Bolt
Hub Capacity
5000 lb Capacity
Bearings
Taper Roller
Steering Rod
1"
Tongue
Quick Hitch
Reach
3" O.D. .188 Wall
Stakes
38" - 42" Adjustable
Track
78"
Approximate Weight
990 lbs.
  • Steering Pins - Tapered pin with slotted nuts so you can tighten steering again and again.
  • Tie Rod Ends - Tapered hardened bronze bushings wiht dust cap to keep dirt out.
  • Wheel base - 15' wheel base standard or varied lengths available on request.
  • Wide variety of wheels and tires.
